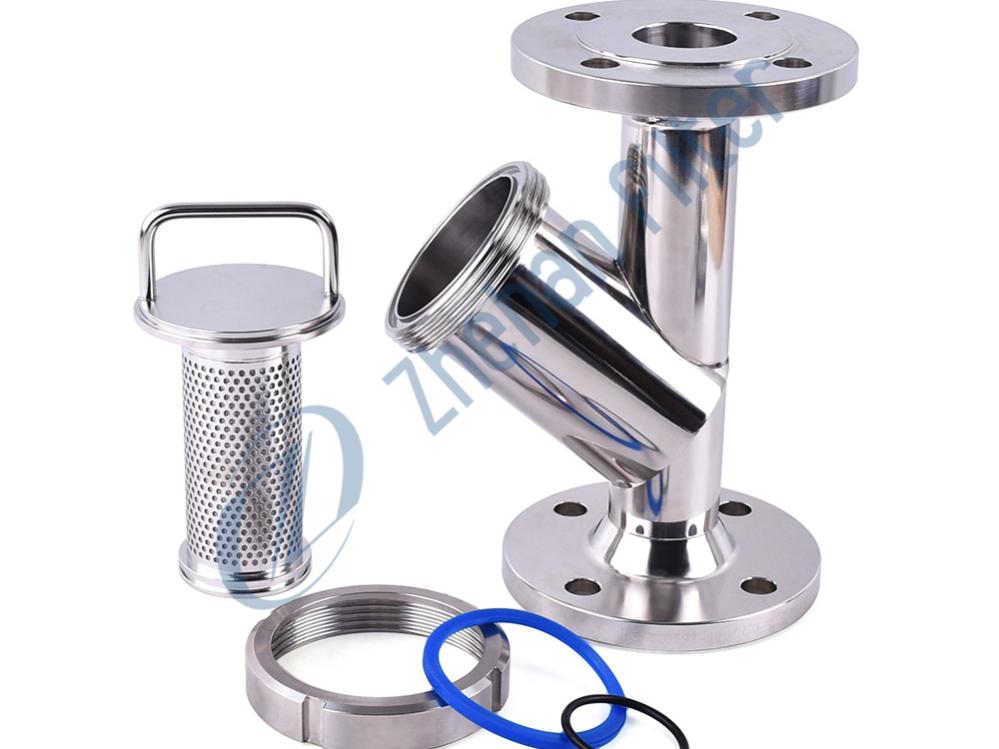

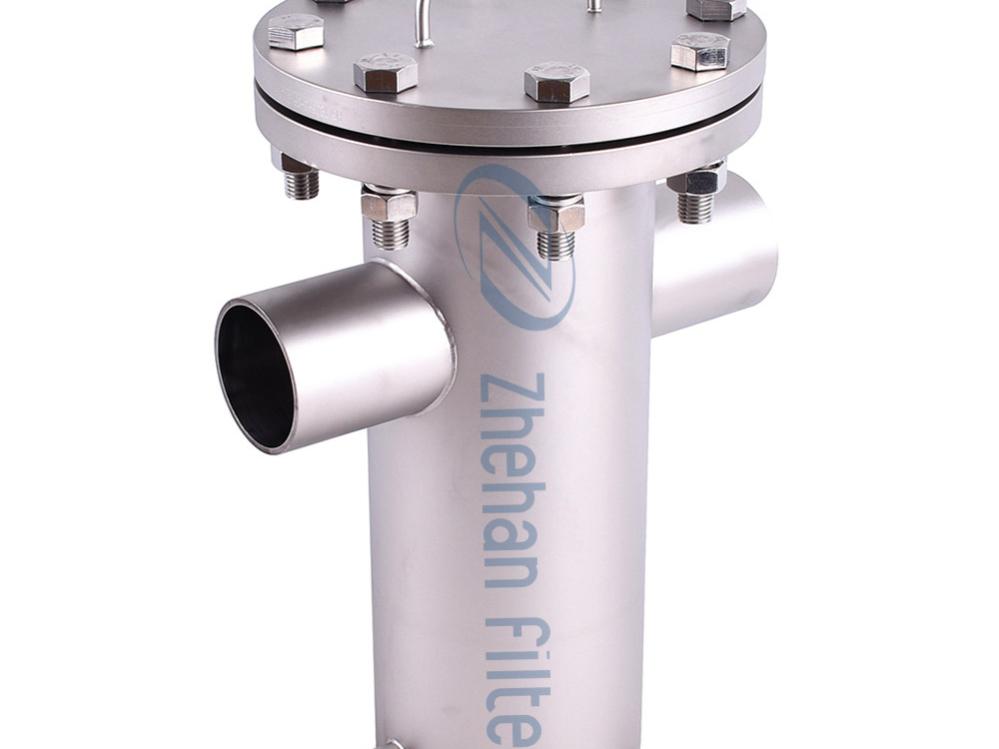

It is mainly composed of nozzle, supervisor, filter basket, flange, flange cover and fasteners. When the liquid enters the filter basket through the pipe, the solid impurity particles are blocked in the filter basket, and the clean fluid is discharged through the filter basket by the filter outlet. When cleaning is needed, unscrew the plug at the bottom of the main pipe, drain the fluid, remove the flange cover, and reinstall it after cleaning. Therefore, it is very convenient to use and maintain.

Material: SUS304, SUS316(AISI316), SUS316L(AISI316L)

Application:
1.Weak corrosive materials in chemical and petrochemical production, such as water, oil, ammonia, hydrocarbons, etc.
2.Corrosive materials in chemical production, such as caustic soda, soda ash, concentrated sulfuric acid, carbonic acid, uronic acid, etc.
3.Low temperature materials in refrigeration, such as liquid methane, liquid ammonia, liquid oxygen and various coolants.
4.Materials with hygienic requirements in food and pharmaceutical production, such as beer, beverage, dairy products, syrup, etc.

Feature:
It is very convenient to use and maintain, compact structure, large filtration capacity, small pressure loss and wide application range.
